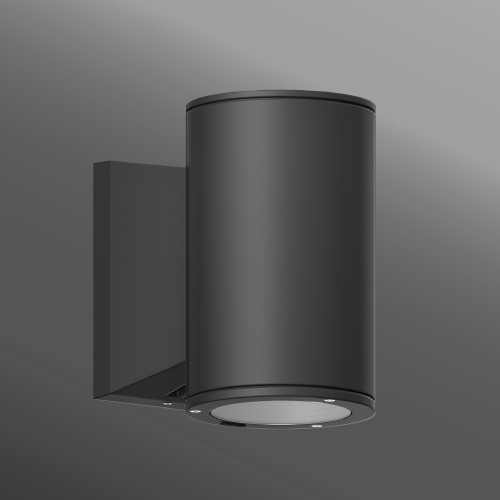

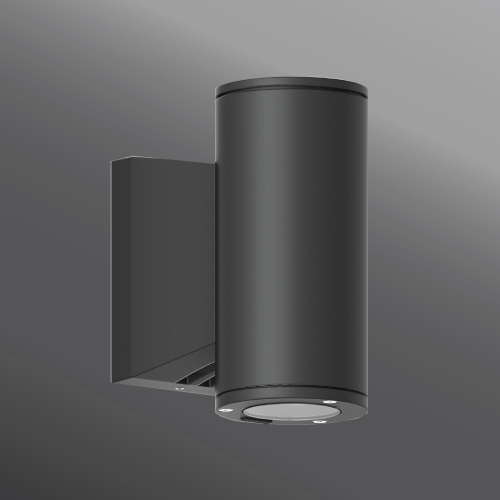

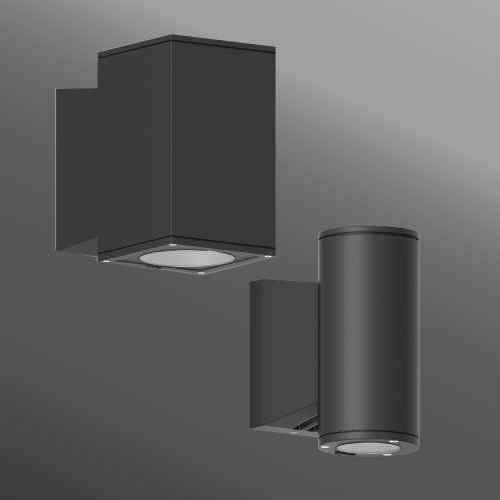

Jet cylindrical and square wall up-down light LED
Model#: UJE-3XXXX Ratings: IP65 F CE IK08 ETL
- Wall luminaires with a selection of light distributions and LED wattages with up and downward light distributions.
- The Jet ofers a variety of beam spread options that facilitates wider spacing and even light distribution between the light fixtures.
- The up/down light versions can be manufactured using different beam spreads for the up and down optics, as well as different wattages upon request.
- Integral electronic control gear.
- Mounting plate for 3" and 4" junction box is provided with the fixture.
- Matching surface mount conduit boxes are available as an option.
- Custom round pole adapters can be manufactured to suit specific pole diameters for column mounting applications.
- Please contact the factory for more information For Type II, III & IV distributions, see Tango 29 to 32 surface wall luminaires.
- This fixture can be provided with an integrated emergency LED driver, please specify as an option.
Other Fixtures in the Jet Design Family:
Spec Sheets and Downloads for Jet cylindrical and square wall up-down light LED
Specification Sheets
|
Jet 35, 37 & 52 Cylindrical Wall Up/Downlight LED
|
|
| Model No. | Watts | Lumens | Kelvin | Beam | Dimmable 1-10V |
| UJE-30341 - 4" | 2x14 | 2x1618 lm | 27K,30K,35K,40K | 20°-24°-36°-71° | • |
|
UJE-30381 - 6.3" |
2x35 | 2x4094 lm | 27K,30K,35K,40K | 13°-20°-40°-61° | • |
| UJE-30383 - 6.3" | 2x33 | 2x1429 lm | RGBW | 21°-35°-26°x48° |
|
Jet 36, 38 & 54 Square Wall Up/Downlight LED
|
|
| Model No. | Watts | Lumens | Kelvin | Beam | Dimmable 1-10V |
| UJE-30361 - 4" | 2x14 | 2x1618 lm | 27K,30K,35K,40K | 20°-24°-36°-71° | • |
| UJE-30401 - 6.3" | 2x35 | 2x4094 lm | 27K,30K,35K,40K | 13°-20°-40°-61° | • |
| UJE-30403 - 6.3" | 2x33 | 2x1429 lm | RGBW | 21°-35°-26°x48° |
