Jet cylindrical and square wall down light LED
Model#: UJE-30XXX Ratings: IP65 F CE IK08 ETL IDA
IP65EN 60598/CLASS I/F/CE/IK08/ETL
Wall luminaires with a selection of light distributions and LED wattages with downward light distributions. The Jet ofers a variety of beam spread options that facilitates wider spacing and even light distribution between the light fixtures. The up/down light versions can be manufactured using different beam spreads for the up and down optics, as well as different wattages upon request. Integral electronic control gear.
Mounting plate for 3" and 4" junction box is provided with the fixture. Matching surface mount conduit boxes are available as an option. Custom round pole adapters can be manufactured to suit specific pole diameters for column mounting applications. Please contact the factory for more information For Type II, III & IV distributions, see Tango 29 to 32 surface wall luminaires. This fixture can be provided with an integrated emergency LED driver, please specify as an option
Other Fixtures in the Jet Design Family:
Spec Sheets and Downloads for Jet cylindrical and square wall down light LED
Specification Sheets
|

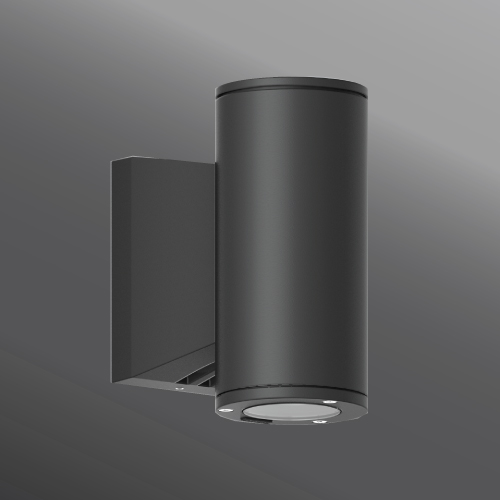

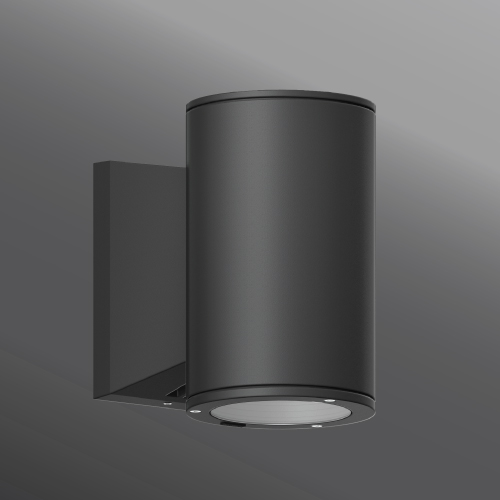

Jet 31, 33 & 51 Cylindrical Wall Downlight
|
|
| Model No. | Watts | Lumens | Kelvin | Beam | Dimmable 1-10V |
| UJE-30351 - 4" | 15 | 1618 lm | 27K,30K,35K,40K | 20°-24°-36°-71° | • |
| UJE-30391 - 6.3" | 35 | 4094 lm | 27K,30K,35K,40K | 13°-20°-40°-61° | • |
| UJE-30393 - 6.3" | 33 | 1429 lm | RGBW | 21°-35°-26°x48° |
|

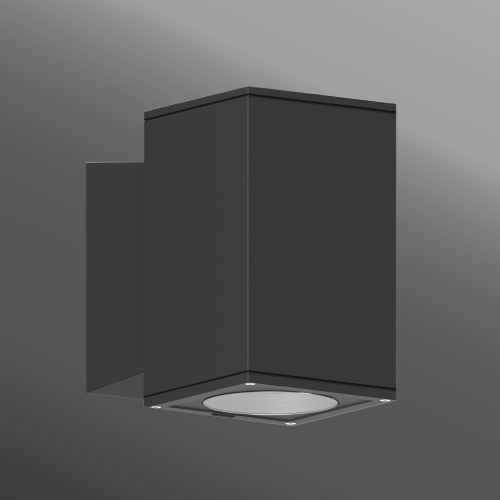

Jet 32, 34 & 52 Square Wall Downlight LED
|
|
| Model No. | Watts | Lumens | Kelvin | Beam | Dimmable 1-10V |
| UJE-30371 - 4" | 15 | 1618 lm | 27K,30K,35K,40K | 20°-24°-36°-71° | • |
| UJE-30411 - 6.3" | 35 | 4094 lm | 27K,30K,35K,40K | 13°-20°-40°-61° | • |
| UJE-30413 - 6.3" | 33 | 1429 lm | RGBW | 21°-35°-26°x48° |
