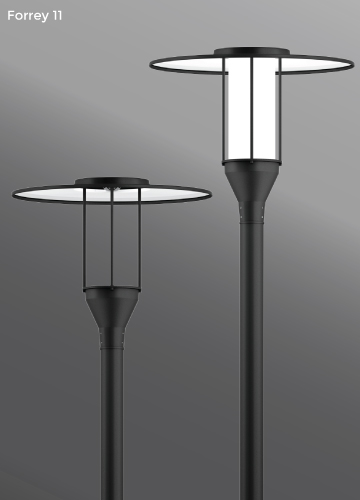

Forrey Post Top
Model#: UFOR-200XX Ratings: IP65 IK10 IDA

- A decorative range of post top luminaires, designed to complement the Forrey pendant, bollard and wall mount with options of having no lens or a high impact UV stabilized opal lens.
- This decorative lantern provides a symmetrical light distribution using high output COB LED.
- Color temperature 2700K, 3000K, 3500K and 4000K, LED CRI >80 and life time 50,000 Hours.
- High pressure die-cast marine grade LM6 aluminum body that is pre-treated with a nickel and zinc phosphate and then powder coated with a 4.9mil thick paint finish ensuring high corrosion resistance.
- Marine grade 316 stainless steel fasteners.
- Durable memory retentive silicone rubber gasket and clear high impact naturally UV stabilized acrylic lens.
- Anodized high purity aluminum reflector.
- This luminaire is provided prewired with power cord to the handhole to simplify installation.
Other Fixtures in the Forrey Design Family:
Spec Sheets and Downloads for Forrey Post Top
Specification Sheets
|
Forrey 9 Post Top No Lens Type I,II,III,IV & V Distribution
|
![]() |
| Model No. |
Watts
|
Lumens
|
Kelvin
|
Dimmable 1-10V
|
| UFOR-20001 |
48
|
4567
|
27K,30K,35K,40K
|
•
|
|
Forrey 9 Post Top Opal Lens
|
![]() |
| Model No. |
Watts
|
Lumens
|
Kelvin
|
Dimmable 1-10V
|
| UFOR-20011 |
50
|
4197
|
27K,30K,35K,40K
|
•
|
|
Forrey 10 Post Top No Lens Type I,II,III,IV & V Distribution
|
![]() |
| Model No. |
Watts
|
Lumens
|
Kelvin
|
Dimmable 1-10V
|
| UFOR-20002 |
48
|
3749
|
27K,30K,35K,40K
|
•
|
|
Forrey 10 Post Top Opal Lens
|
![]() |
| Model No. |
Watts
|
Lumens
|
Kelvin
|
Dimmable 1-10V
|
| UFOR-20012 |
50
|
3275
|
27K,30K,35K,40K
|
•
|
|
Forrey 11 Post Top No Lens Type I,II,III,IV & V Distribution
|
![]() |
| Model No. |
Watts
|
Lumens
|
Kelvin
|
Dimmable 1-10V
|
| UFOR-20041 |
70
|
6963
|
27K,30K,35K,40K
|
•
|
|
Forrey 11 Post Top Opal Lens
|
![]() |
| Model No. |
Watts
|
Lumens
|
Kelvin
|
Dimmable 1-10V
|
| UFOR-20051 |
60
|
4553
|
27K,30K,35K,40K
|
•
|
|
Forrey 12 Post Top No Lens Type I,II,III,IV & V Distribution
|
![]() |
| Model No. |
Watts
|
Lumens
|
Kelvin
|
Dimmable 1-10V
|
| UFOR-20042 |
70
|
6426
|
27K,30K,35K,40K
|
•
|
|
Forrey 12 Post Top Opal Lens
|
![]() |
| Model No. |
Watts
|
Lumens
|
Kelvin
|
Dimmable 1-10V
|
| UFOR-20052 |
60
|
4053
|
27K,30K,35K,40K
|
•
|
|
Forrey 13 Post Top No Lens Type I,II,III,IV & V Distribution
|
![]() |
| Model No. |
Watts
|
Lumens
|
Kelvin
|
Dimmable 1-10V
|
| UFOR-20021 |
50
|
4539
|
27K,30K,35K,40K
|
•
|
|
Forrey 13 Post Top Opal Lens
|
![]() |
| Model No. |
Watts
|
Lumens
|
Kelvin
|
Dimmable 1-10V
|
| UFOR-20031 |
50
|
4556
|
27K,30K,35K,40K
|
•
|
|
Forrey 14 Post Top No Lens Type I,II,III,IV & V Distribution
|
![]() |
| Model No. |
Watts
|
Lumens
|
Kelvin
|
Dimmable 1-10V
|
| UFOR-20022 |
48
|
3711
|
27K,30K,35K,40K
|
•
|
|
Forrey 14 Post Top Opal Lens Type I,II,III,IV & V Distribution
|
![]() |
| Model No. |
Watts
|
Lumens
|
Kelvin
|
Dimmable 1-10V
|
| UFOR-20032 |
50
|
3526
|
27K,30K,35K,40K
|
•
|
|
Forrey 15 Post Top No Lens Type I,II,III,IV & V Distribution
|
![]() |
| Model No. |
Watts
|
Lumens
|
Kelvin
|
Dimmable 1-10V
|
| UFOR-20061 |
70
|
7635
|
27K,30K,35K,40K
|
•
|
|
Forrey 15 Post Top Opal Lens
|
![]() |
| Model No. |
Watts
|
Lumens
|
Kelvin
|
Dimmable 1-10V
|
| UFOR-20071 |
60
|
4553
|
27K,30K,35K,40K
|
•
|
|
Forrey 16 Post Top No Lens Type I,II,III,IV & V Distribution
|
![]() |
| Model No. |
Watts
|
Lumens
|
Kelvin
|
Dimmable 1-10V
|
| UFOR-20062 |
70
|
6426
|
27K,30K,35K,40K
|
•
|
|
Forrey 16 Post Top Opal Lens
|
![]() |
| Model No. |
Watts
|
Lumens
|
Kelvin
|
Dimmable 1-10V
|
| UFOR-20072 |
60
|
4053
|
27K,30K,35K,40K
|
•
|
Photometric and Downloads
| Product Information |
| Forrey Photometric IES |
| Forrey CAD Files (2D / RFA / 3DS) |
| IFC - BIM |
| Dialux Files .uld |
Installation Instructions
| Product Installation |
| Forrey Installation |
