Vekter Adjustable Arm, IDA: Horizontal
Model#: UVK-300XX Ratings: IP65 F CE IK09 ETL IDA

The Vekter with Adjustable Arm is a wedge-shaped, low-profile, wall-mounted luminaire designed specifically for downlight applications. This variant features an adjustable arm that allows for precise aiming, offering greater flexibility in directing light exactly where it’s needed.
Equipped with high-powered LEDs and a range of optical options, the Vekter supports Type II, III, IV, and V light distributions. These options enable wider fixture spacing and consistent illumination. With a Type II optic, spacings of up to 40 feet on center can be achieved while maintaining uniformity that meets path of egress requirements—resulting in improved energy efficiency and lower installation costs.
The luminaire can also be configured with mixed beam optics, such as combining Type II and Type IV within the same fixture, to achieve customized light distribution. Integral electronic control gear is housed in a waterproof enclosure, and a mounting plate compatible with 3" and 4" octagonal junction boxes is included.

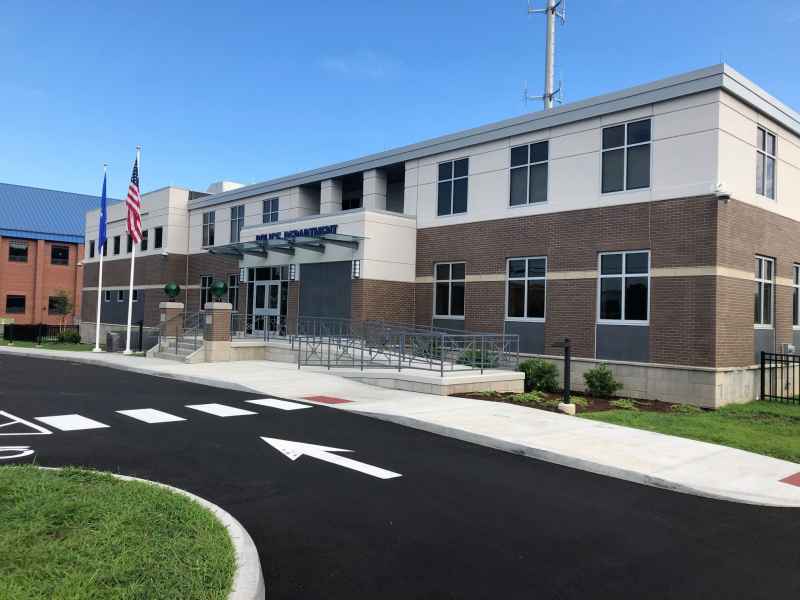

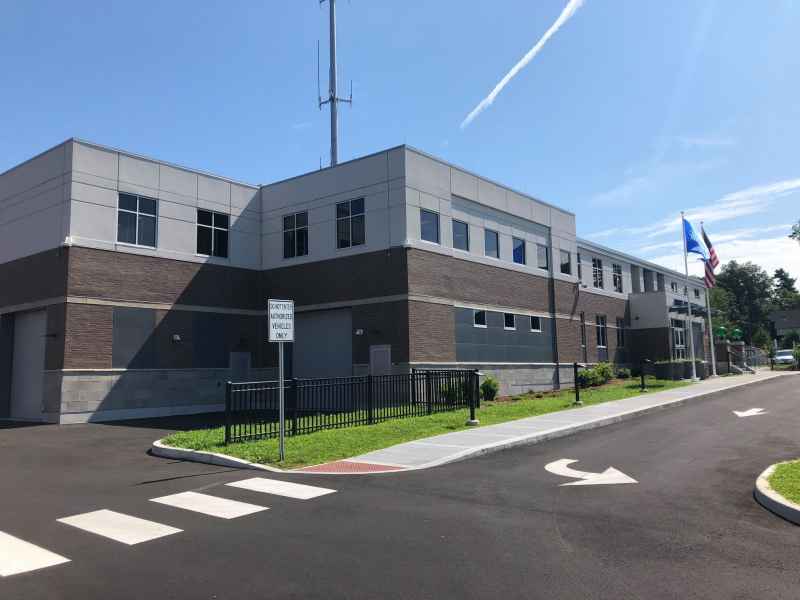

Ideal for lighting footpaths, building facades, entrances, and surrounding parking areas, the Vekter with Adjustable Arm delivers targeted performance, versatility, and architectural appeal.
Other Fixtures in the Vekter Design Family:
Spec Sheets and Downloads for Vekter Adjustable Arm, IDA: Horizontal
Specification Sheets
Vekter 9 Medium Adjustable Arm
|
Model No. | Watts | Lumens | Kelvin | Beam | Dimmable 1-10V |
UVK-30021 | 20 | 2446 lm | 27K,30K,35K,40K, • |
31°,53°,66°,110°, T2, T3, T4 |
• |
UVK-30022 | 28 | 3308 lm | 27K,30K,35K,40K, • |
31°,53°,66°,110°, T2, T3, T4 |
• |
• = Amber LED
Vekter 10 Large Adjustable Arm
|
Model No. | Watts | Lumens | Kelvin | Beam | Dimmable 1-10V |
UVK-30041 | 37 | 5073 lm | 27K,30K,35K,40K |
32°,52°,65°,108°, T2, T3, T4 |
• |
UVK-30042 | 54 | 6879 lm | 27K,30K,35K,40K |
32°,52°,65°,108°, T2, T3, T4 |
• |
Photometric and Downloads
Product Information |
Vekter photometric IES |
Vekter photometric report /BUG Rating (PDF) |
Vekter CAD Files (2D / RFA / 3DS) |
IFC - BIM |
Dialux Files .uld |
