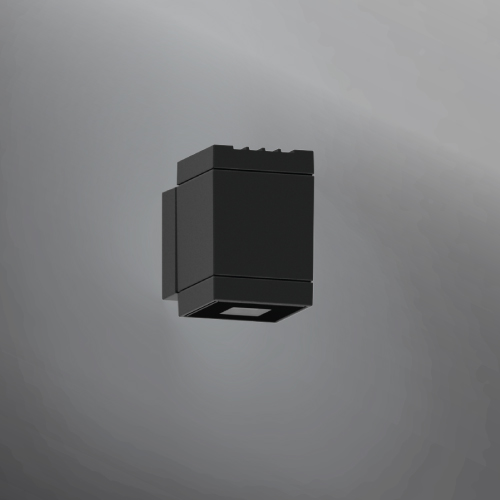

Lador Wall Light
Model#: ULD-300XX Ratings: IP65 CE IK08 ETL IDA

- A range of square outdoor IP66 wall sconce that meets both aesthetic and functional applications.
- This cubic wall sconce range is available with 4 different sizes, starting with a small 2.4" square profile at 3w, and increases proportionately to 3" at 11w, 4.5" at 21w and 5.5" square at 40w.
- This glare-free luminaire is available in Narrow beam, Medium, Wide, Very Wide and Elliptical beam patterns.
- Engineered to meet harsh outdoor environments, as well as being able to be used as a decorative indoor product.
- The Lador is provided with an integral driver and has accessories that include; dichroic color filters, linear spread lens, honeycomb louvres and anti-glare visors.
- The Lador product family consists of; floodlights, wall sconces, ceiling mounted squares and cluster column event poles.
- Available with a natatorium rated coating.
Other Fixtures in the Lador Design Family:
Spec Sheets and Downloads for Lador Wall Light
Specification Sheets
|
Lador Surface
|
| Model No. |
Lamp
|
Light Output
|
LED Color
|
Beam
|
Dimmable 1-10V
|
| Lador 5/50 | ![]() |
||||
| ULD-30001 | 4 |
222 lm
|
27K,30K,35K,40K, •
|
11°-18°-31°-60°-12°x43°
|
|
| ULD-30041 | 4 |
170 lm
|
RGBW
|
34˚
|
|
|
Lador 6/51 |
![]() |
||||
|
11
|
904 lm
|
27K,30K,35K,40K
|
11°-18°-31°-66°-12°x42°
|
||
|
10
|
520 lm
|
RGBW
|
8°-17°-26°-65°-43°x11°
|
||
| Lador 7/52 | ![]() |
||||
| ULD-30021 |
22
|
1975 lm
|
27K,30K,35K,40K
|
11°-18°-31°-60°-12°x41°
|
• |
| ULD-30061 |
22
|
1133 lm
|
RGBW
|
8°-17°-26°-65°-43°x11°
|
|
| Lador 8/53 | ![]() |
||||
| ULD-30031 |
40
|
3185 lm
|
27K,30K,35K,40K, •
|
10°-18°-30°-70°-12°x41°
|
•
|
| ULD-30071 |
28
|
1600 lm
|
RGBW
|
8°-17°-26°-65°-43°x11°
|
• = Amber LED
