Harrier 7.87"
Model#: UHA-60XXX Ratings: IP67 F CE IK10 ETL

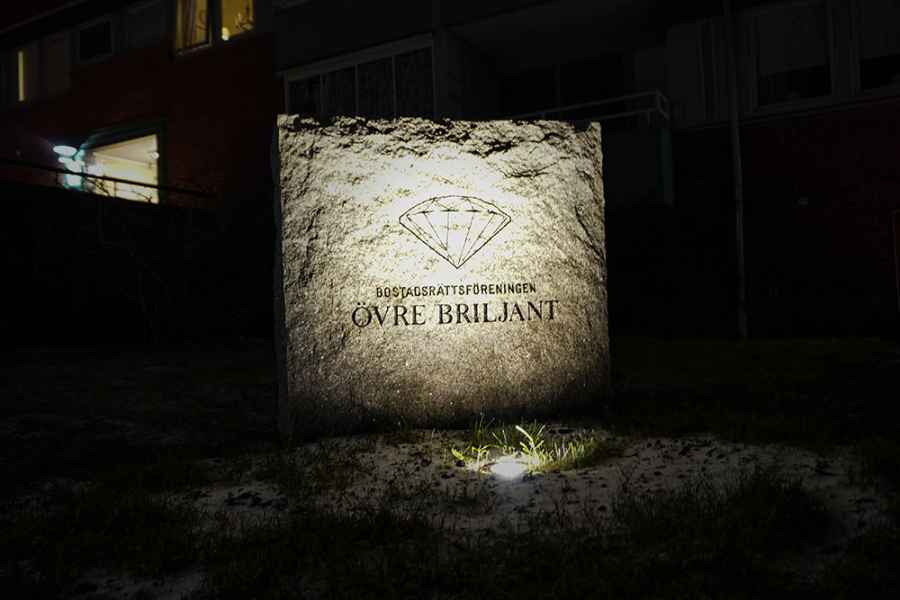

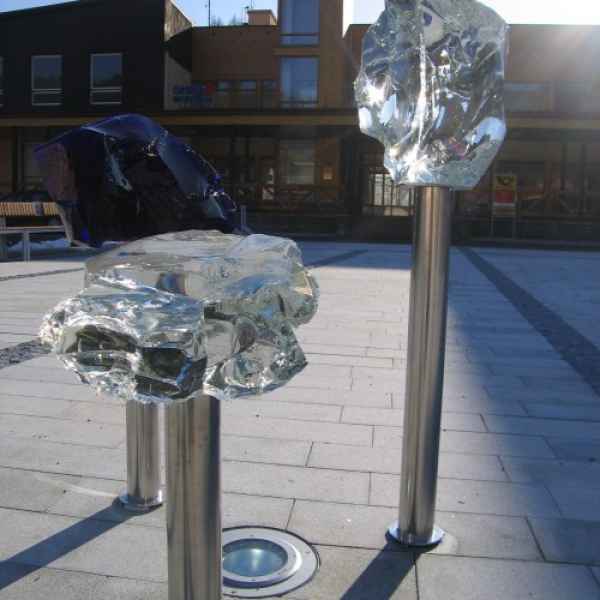

Suitable for wet locations A top range of inground uplights with a choice of round or square stainless steel or aluminum front rings, suitable to illuminate shopping and pedestrian areas, parks, gardens and sculptures. Main characteristics are low glare. The LED luminaires have features such as long life, limited maintenance and constant lifetime performance.This product has a standard 'touchable glass' ideally suited for spaces that are used by the general public. To ensure efficient drainage, gravel must be used to a depth of 17" beneath the housing, and should also be placed around the luminaire. Low copper content die-cast aluminum housing with high corrosion resistance. The 0.24" thick front ring is available in grade 316 stainless steel or aluminum. Stainless steel fasteners in grade 316. Power is provided through a single custom designed Ligman VSAW anti-wicking PG 1/2" water tight cable gland and 3ft of Outdoor Submersible #18/3 SOOW 600V power cable. Durable silicone rubber gasket and clear or frosted toughened 0.39" thick glass, walk over 440lbs. maximum. Body is treated with a chemical chromatized protection before powder coating, ensuring high corrosion resistance. Optional Recessing box in high density polyethylene. Optional ADA anti slip surface.
Other Fixtures in the Harrier Design Family:
Spec Sheets and Downloads for Harrier 7.87"
Specification Sheets
Harrier 3 Round 7.87"
|
|
Model No. | Watts | Lumens | Kelvin | Beam | Dimmable 1-10V |
UHA-60295 | 6 | 410 lm | 27K,30K,35K,40K | - | • |
UHA-60049 | 15 | 1468 lm | 27K,30K,35K,40K | 15˚- 26˚- 40˚ | • |
UHA-60050 | 29 | 2899 lm | 27K,30K,35K,40K | 15˚- 28˚- 41˚ | • |
UHA-60296 | 22 | 2124 lm | 27K,30K,35K,40K | 8˚ | • |

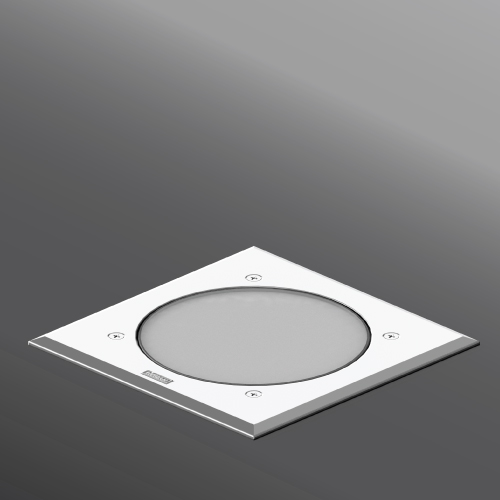

Harrier 4 Square 7.87"
|
|
Model No. | Watts | Light Output | LED Color | Power W | Dimmable 1-10V |
UHA-60305 | 6 | 410 lm | 27K,30K,35K,40K | - | • |
UHA-60209 | 15 | 1468 lm | 27K,30K,35K,40K | 15˚- 26˚- 40˚ | • |
UHA-60215 | 29 | 2899 lm | 27K,30K,35K,40K | 15˚- 28˚- 41˚ | • |
UHA-60306 | 22 | 2124 lm | 27K,30K,35K,40K | 8˚ | • |
Accessories

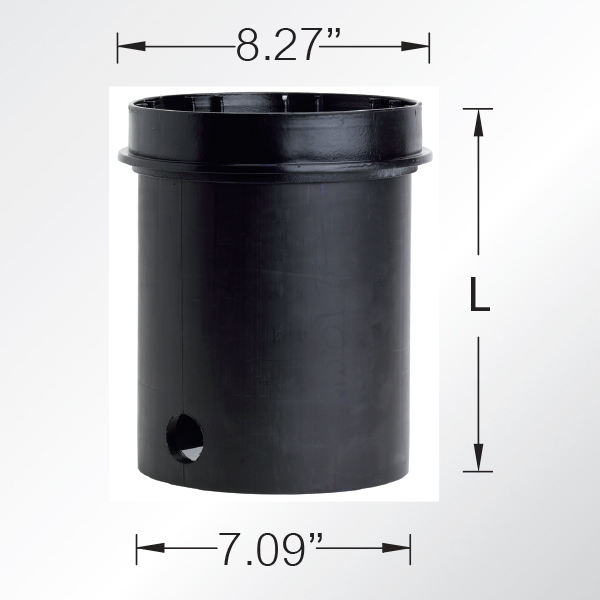

Recessing box | |
A60251 |

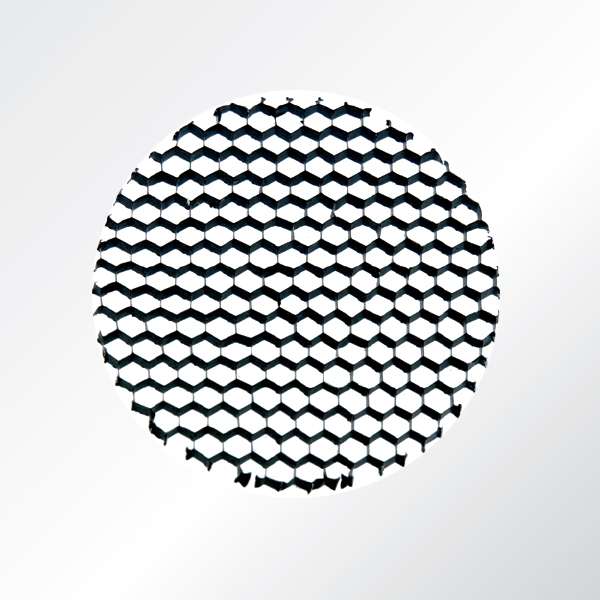

Honey comb louvre | |
A61321 |

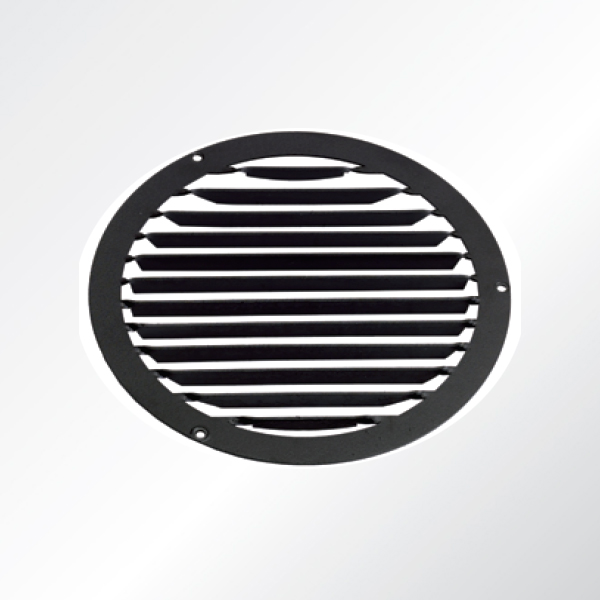

Anti glare louvre | |
A60221 |
Color Filter | |
A60116 Red |
|
A60117 Blue |
|
A60118 Amber |
|
A60119 Green |
