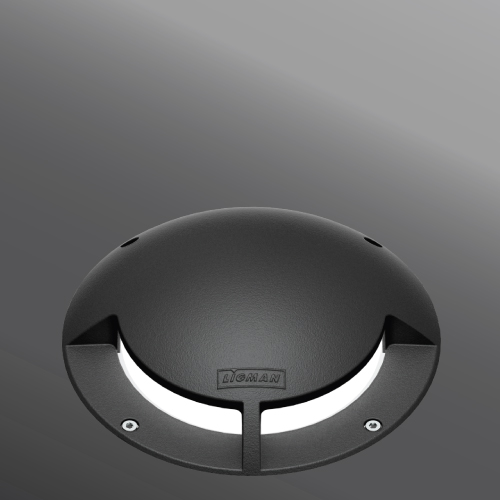

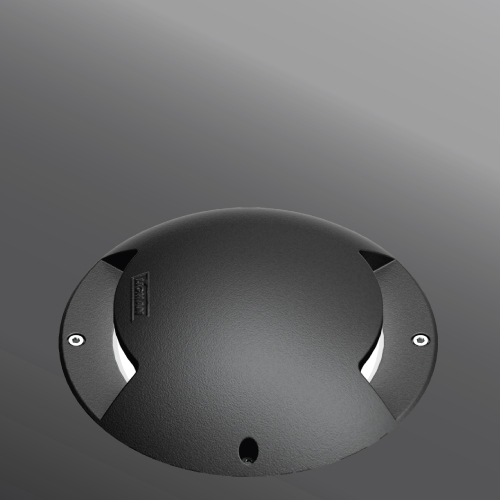

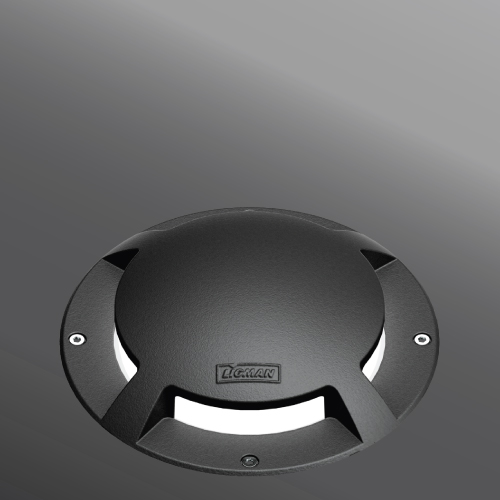

Mask Inground Guide Light

Model#: UMK-60XXX      Ratings:   IP67   Class II   F   CE   IK10   ETL

A top range of inground guide lights with light distribution options from one, two or four sectors. Designed for use in shopping, pedestrian and park areas with a selection of low voltage, energy saving LEDs. To ensure efficient drainage, gravel must be used to a depth of 17" and a width of 12" beneath the housing and should also be placed around the luminaire. An animated video can be viewed on the Ligman website to show proper Mask installation procedure to assist contractors and ensure a problem-free installation. Power is provided to the integral control gear through a specially developed anti-wicking PG 13.5 watertight cable gland and 2ft of outdoor submersible #18/3 SOOW 600v power cable. A 4500lb maximum load is trasnferred by the housing to the foundation. Vehicles with pneumatic tires can drive over the luminaire, but the speed must not exceed 6mph. Recessing box in high density polyethylene is included. The high power LED optoin is available in white 2700, 3000 and 4000K.

Jump down to Spec Sheets

Spec Sheets and Downloads for Mask Inground Guide Light
